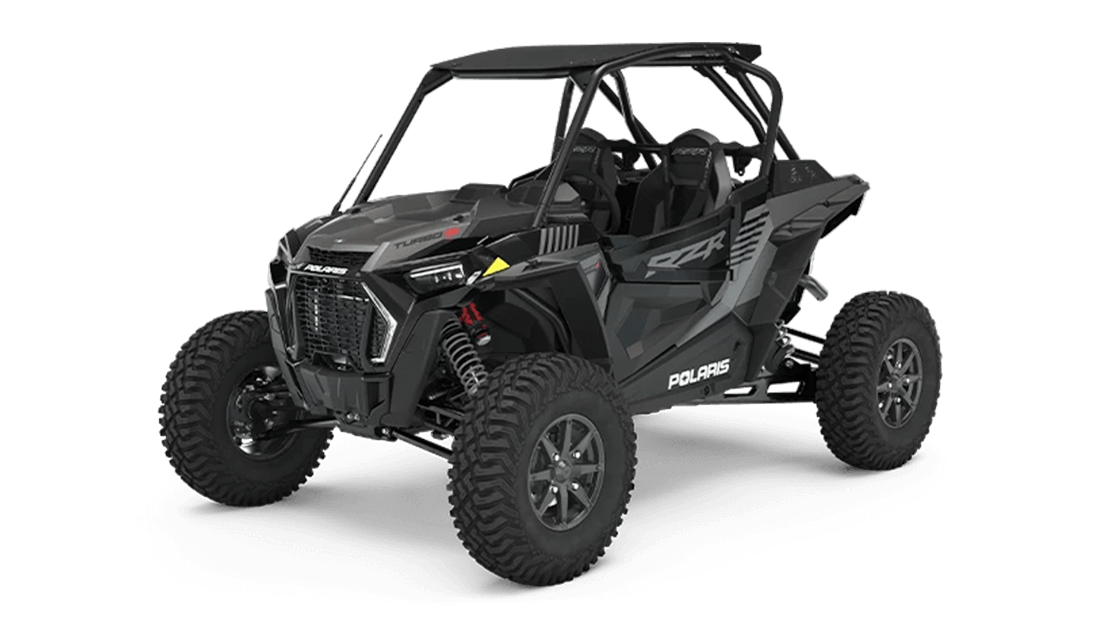

2022 RZR Turbo S

2022 RZR Turbo S

Specifications

Cooling Liquid
Cylinders Displacement 925cc
Drive System Type Isolated Xtreme Performance True On-Demand AWD/2WD
Engine Braking System (EBS) Not Equipped
Engine Type 4-Stroke DOHC Twin Cylinder Turbocharged
Fuel System/Battery Electronic Fuel Injection
Horsepower 168 HP
Transmission/Final Drive Automatic PVT P/R/N/L/H
Bed Box Dimensions (L x W x H) 28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm)
Box Capacity 300 lb (136.1 kg)
Estimated Dry Weight 1,779 lb (807 kg)
Fuel Capacity 9.5 gal (35.9 L)
Ground Clearance 16" (40.6 cm)
Overall Vehicle Size (L x W x H) 122 x 72 x 75 in (309.9 x 182.8 x 190.5 cm)
Payload Capacity 740 lb (335.6 kg)
Wheelbase 90 in ( 228.6 cm)
Front/Rear Brakes 4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers
Parking Brake Park In-Transmission
Front Tires 32 x 10-15; ITP COYOTE (8-Ply Rated)
Rear Tires 32 x 10-15; ITP COYOTE (8-Ply Rated)
Wheels Cast Aluminum
Front Shocks FOX 2.5 Podium Internal Bypass Shocks with Live Valve (Electronically Controlled Damping)
Front Suspension High-Clearance Dual A-Arm with Stabilizer Bar and 25 in (63.5 cm) Usable Travel*, 19 in (48.2 cm) of Wheel Travel
Rear Shocks FOX 3.0 Podium Internal Bypass Shocks with Live Valve (Electronically Controlled Damping)
Rear Suspension Trailing Arm & High-Clearance Radius Rods with Stabilizer Bar and 25 in (63.5 cm) Usable Travel*, 21 in (53.3 cm) of Wheel Travel
Electronic Suspension Control System DYNAMIX 1.0 Active Suspension System
Cargo System Lock & Ride
Doors Bowed Full Doors
Hitch Type Not Equipped
Instrumentation RIDE COMMAND® 7” Glove-Touch Display: DYNAMIX Visualizer, Digital Instrumentation, Built-In GPS, (cell-based or GPS based) Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In-Vehicle Communications Capable With Optional Sena Headsets Speedometer, Odometer, Tripmeter, Tachometer, Coolant Temperature, Volt Meter, Hour Meter, Service Indicator, Clock, Gear Indicator, Fuel Gauge, Hi-Temp Light, Seatbelt Reminder Light, Fault Code Display, DC Outlet, Ambient Temp Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet
Lighting Front Blacked Out White LED Low/High w/ Accent Lights & Rear Red LED Tail / Brake / Accent Lights
Seat Type Bolstered Bucket Seats with Seat Slider and SubZero 4-point harness
Electronic Power Steering Xtreme Performance with Quick Turn Rack and Integrated Steering Angle Sensor
Onyx Black
